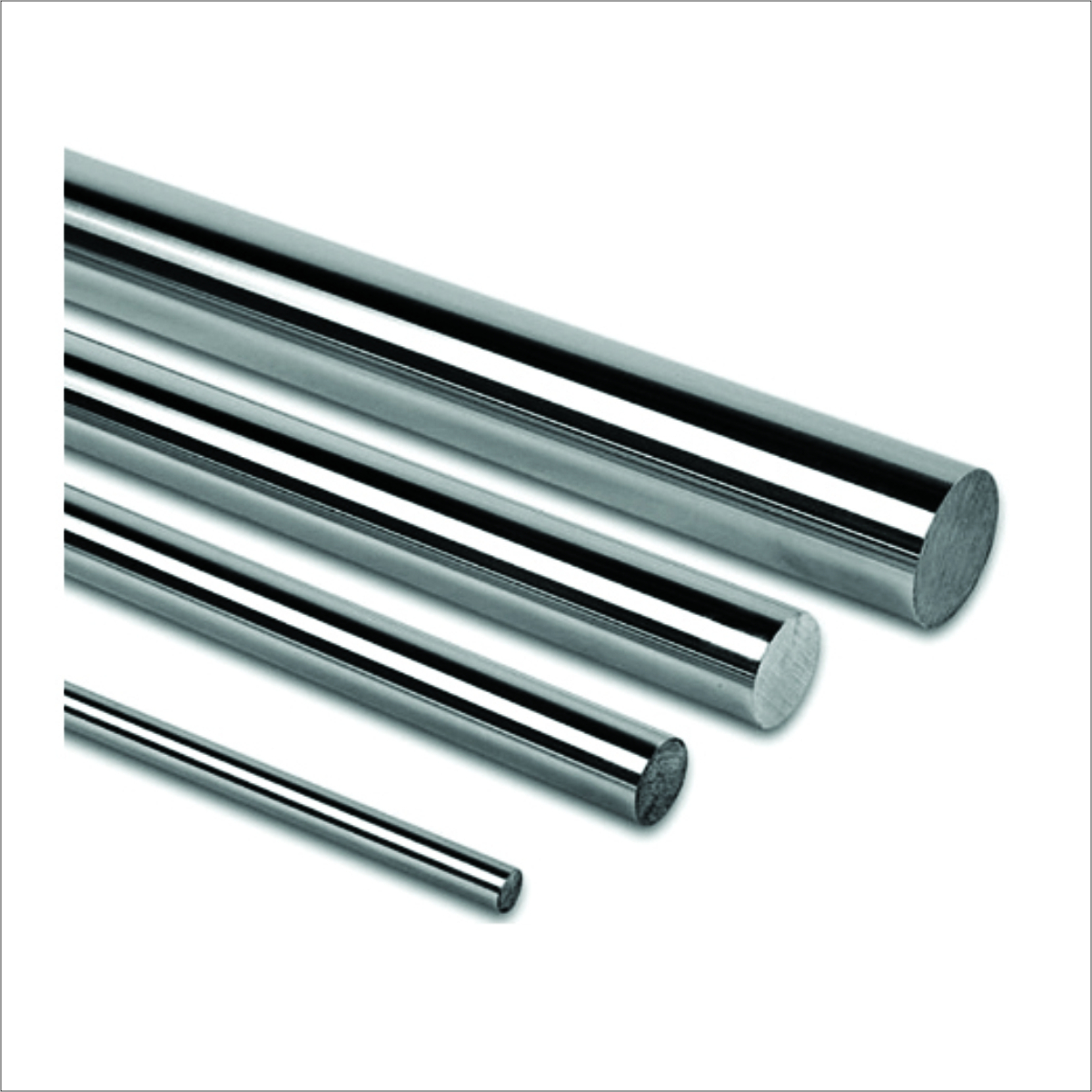

We are supplying a widespread variety of Hard Chrome Plated Bars. We can supply these bars of any grade of material. Our range of products is made up from superior quality of raw material and is being offered at market leading prices. These bars are extensively recognized for optimum performance and robust construction. Our products are also widely appreciated for their elegant finish, resistance from corrosion and durability.


Key Benefits:

• Low Friction

• Excellent Wear Resistance

• Good Corrosion Resistance

• Extended Life of Parts

Process :

Hard Chrome Plating is an electrolytic method of depositing chrome to engineering applications, from a Chromic acid solution. Hard Chrome can be deposited successfully and advantageously onto most metallic substrate materials.

Material : EN8D/C45 & Other material can be used as per Customer Requirement.

Size Range : 12 MM To 500 MM

Maximum Length : Up to 6000 MM

Hard Chrome Plating Thickness : 25 To 30 Microns

Surface Finish : RA0.1µm – RA0.4 µm

Chrome Surface Hardness : 850 to 1000HV

Straightness : 0.1 per meter max.

Accuracy : External Diameter : Upto 2 Microns

• Pneumatic / Hydraulic Cylinder Shaft
• Textile Components
• Pump Shafts & Rotors
• Fitness Equipment
• Automobile & Mechanical Components
• Plastic & Rubber Rolls, Moulds, Dies, Screws etc
Because it has low surface energy, is there for used on moving components of engines, pumps, compressors, hydraulic and air operated plants, presses etc.
×
